Product Introduction:
Linoya Zhaga Receptacle is designed For communication and sensor units with attached flat seal for standardized metal sheet cut-out. Electromechanical interface for outdoor luminaires according to Book 18 to accommodate communication and sensor units.
Send Inquiry
Description
Technical Parameters

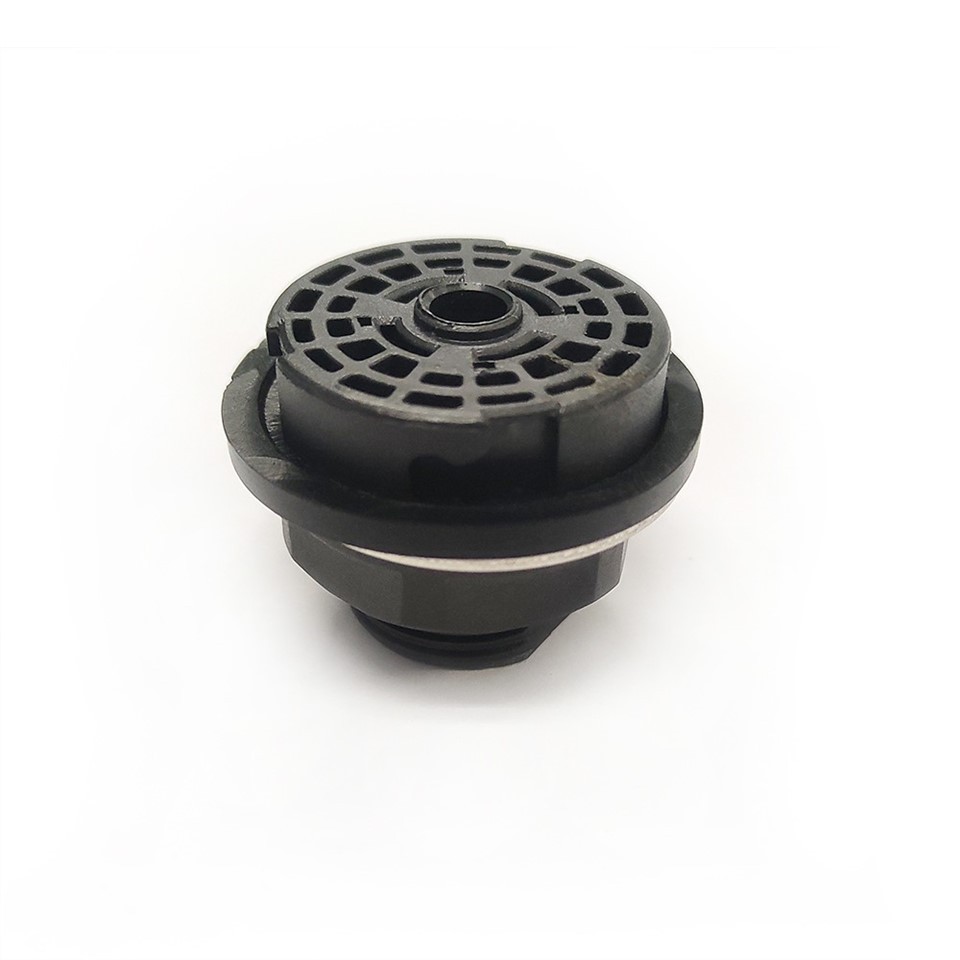

Zhaga Receptacle adopts the standardized interface defined in Zhaga Book 18, which is specially designed for LED light sources and actuators in outdoor lamps. Zhaga Receptacle includes receptacle assembly, sealing cap and two bases with dimensions of 40mm and 80mm, which can provide complete electrical connection between the receptacle and the related sensor module. The receptacle assembly is used in combination with the sensors and actuators, which can be inserted into the rotary lock and pluggable sensor module. It can also provide DC power supply for the module, and can provide DALI 2.0 or derived two-conductor line bus for communication and data transmission. The product adopts compact design, which makes it easy to install the sensor module upwards, sideways or downwards on road, street and area lighting fixtures.

39

Application





Street and Area Lighting Outdoor Luminaires

- Wall Packs

- Parking Lots

- Walkways Photo Controls

Central Management System Other sensor modules



Electrical





Contacts rating: 1.5A, 30V (24V typical) Hot pluggable capable

4 pole contacts

- Pin 1: 24Vdc

- Pin 2: DALI (or DALI based protocol) 一/common ground

- Pin 3: DALI (or DALI based protocol) +

- Pin 4: General I/O



Benefits





  • Standardized interface defined in Zhaga Book 18.
  • Compact size allowing greater flexibility in luminaire design.
  • Advanced sealing to achieve IP65 with no mounting screws.
  • Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface.
  • Flexible mounting position, upwards, downwards and sideways facing.
  • Integrated single gasket that seals to both luminaire and module that minimizes assembly time.



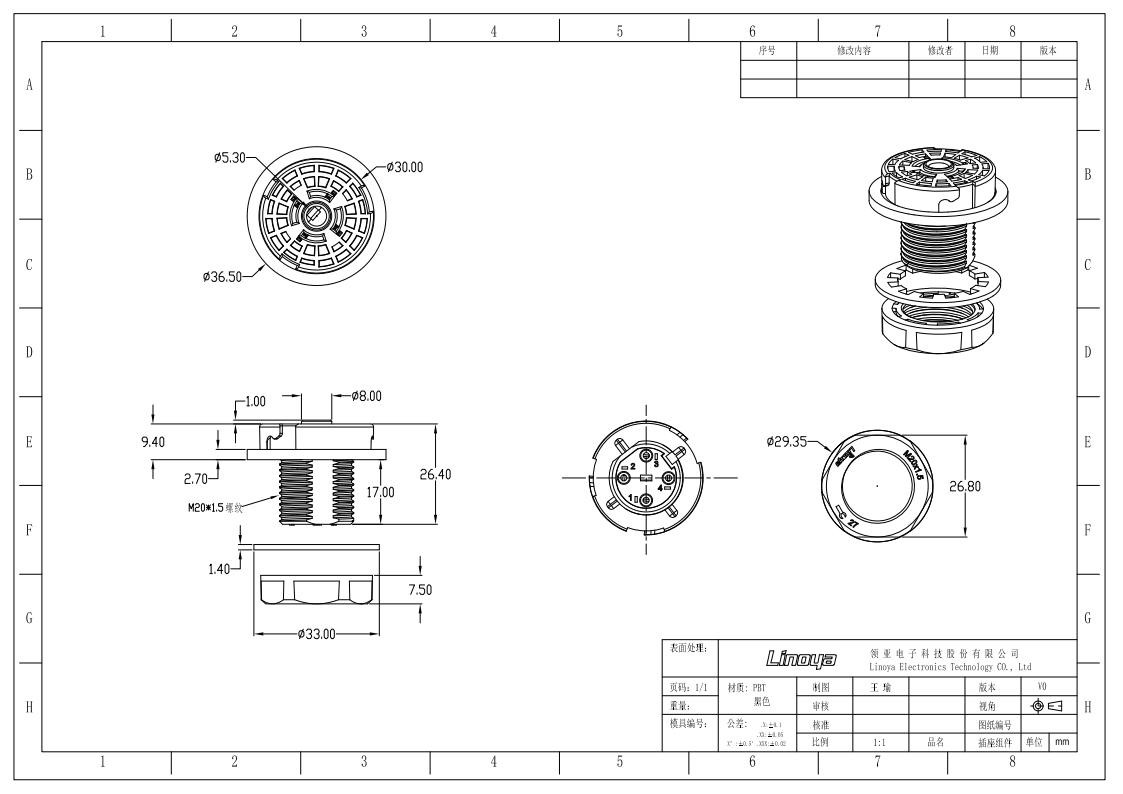

Mechanical

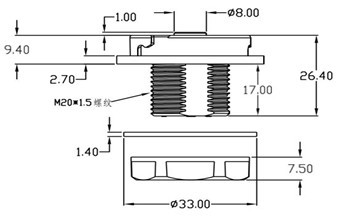

Mounting: M20 × 1.5 thread

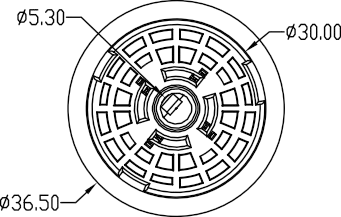

Receptacle: Ø30mm

Gasket: Ø36.5mm

Thread length: 17mm

IP65

IK09 rated system solution





Product Information

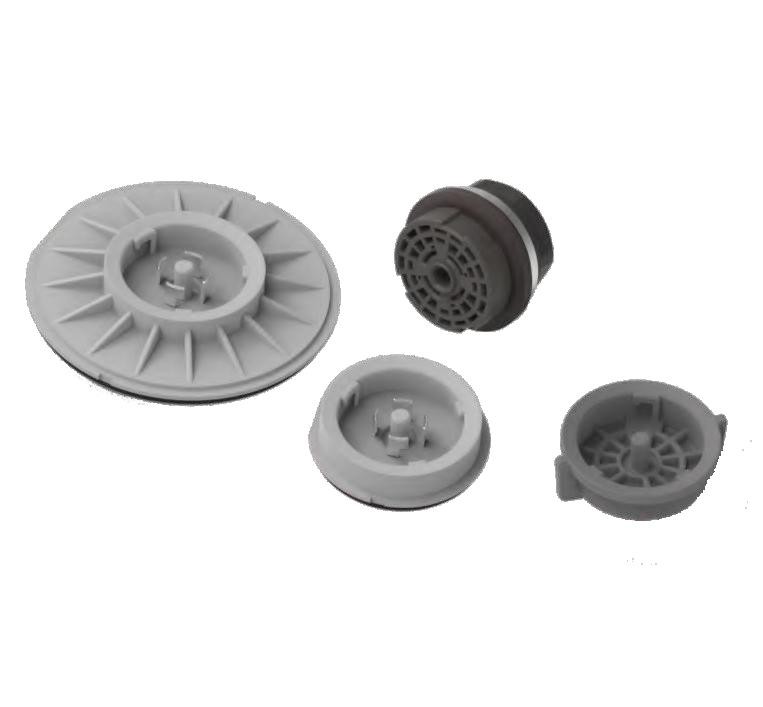

Product Image Product Description Product Image Product Description

product-161-161

Receptacle

p202512101018204f77b002

40mm

Dome(low)

p2025121010182100989001

Sealing Cap

product-176-152

40mm

Dome(tall)

product-168-182

40mm Base

p20251210101819eddc2002

80mm

Dome(low)

p20251210101820a82d3001

80mm Base

p20251210101819c04f5002

80mm

Dome(tall)



Receptacle





product-341-217
42





product-202-128





40
