Zhaga Dome

Zhaga Dome
Product Introduction:
Quick-release cover with a secure, twist-resistant fit. Features push-in latching spigots for easy installation onto the base plate.
Send Inquiry
Description
Technical Parameters

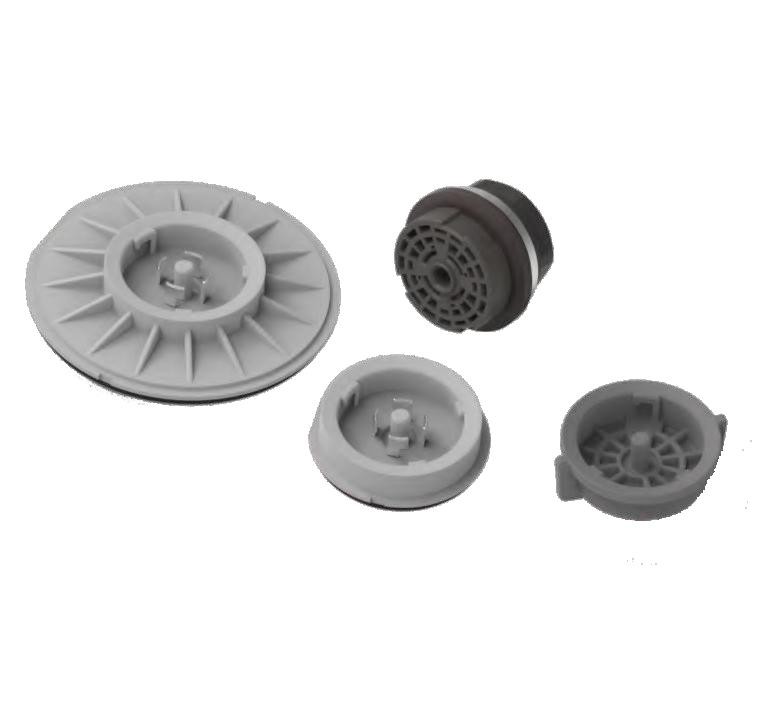

Zhaga Receptacle adopts the standardized interface defined in Zhaga Book 18, which is specially designed for LED light sources and actuators in outdoor lamps. Zhaga Receptacle includes receptacle assembly, sealing cap and two bases with dimensions of 40mm and 80mm, which can provide complete electrical connection between the receptacle and the related sensor module. The receptacle assembly is used in combination with the sensors and actuators, which can be inserted into the rotary lock and pluggable sensor module. It can also provide DC power supply for the module, and can provide DALI 2.0 or derived two-conductor line bus for communication and data transmission. The product adopts compact design, which makes it easy to install the sensor module upwards, sideways or downwards on road, street and area lighting fixtures.

39

Application





Street and Area Lighting Outdoor Luminaires

- Wall Packs

- Parking Lots

- Walkways Photo Controls

Central Management System Other sensor modules



Electrical





Contacts rating: 1.5A, 30V (24V typical) Hot pluggable capable

4 pole contacts

- Pin 1: 24Vdc

- Pin 2: DALI (or DALI based protocol) 一/common ground

- Pin 3: DALI (or DALI based protocol) +

- Pin 4: General I/O



Benefits





  • Standardized interface defined in Zhaga Book 18.
  • Compact size allowing greater flexibility in luminaire design.
  • Advanced sealing to achieve IP65 with no mounting screws.
  • Scalable solution allows use of Ø40mm photocell and a Ø80mm central management system with the same connection interface.
  • Flexible mounting position, upwards, downwards and sideways facing.
  • Integrated single gasket that seals to both luminaire and module that minimizes assembly time.



Mechanical





Mounting: M20 × 1.5 thread

Receptacle: Ø30mm

Gasket: Ø36.5mm

Thread length: 17mm

IP65

IK09 rated system solution



Product Information





Product Image Product Description Product Image Product Description

product-161-161

Receptacle

product-197-150

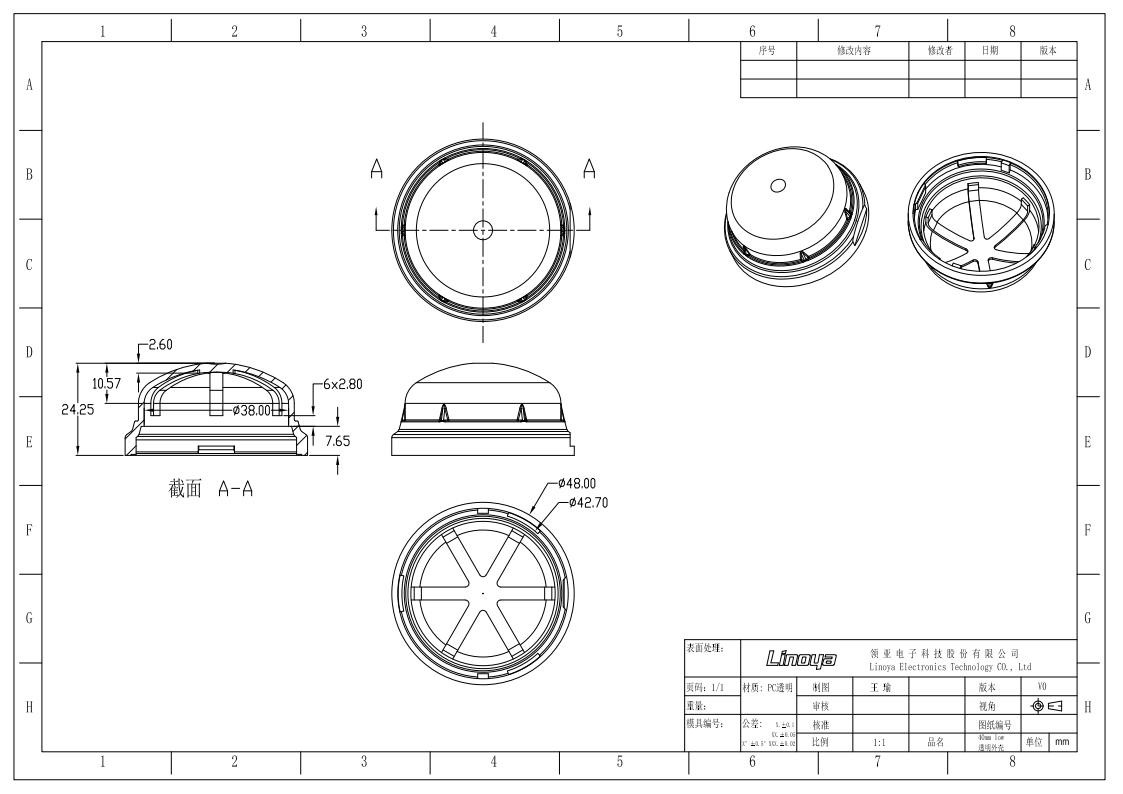

40mm

Dome(low)

product-1-1

Sealing Cap

product-176-152

40mm

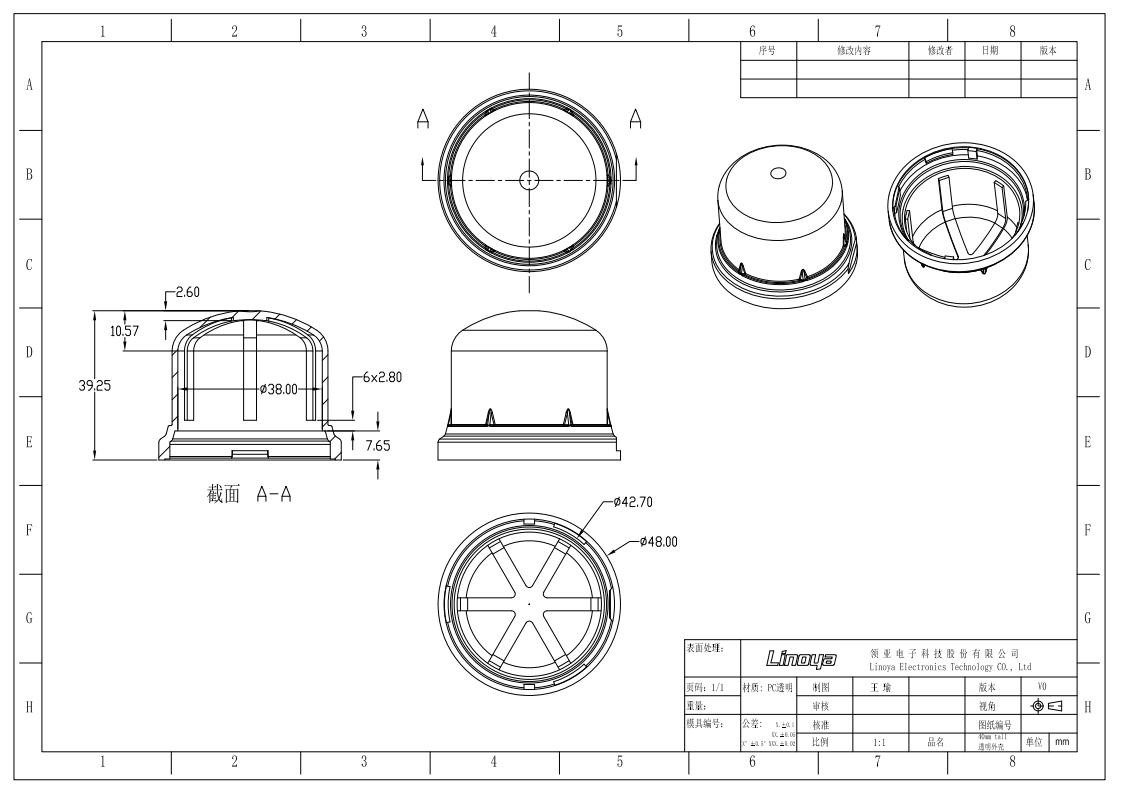

Dome(tall)

product-168-182

40mm Base

product-1-1

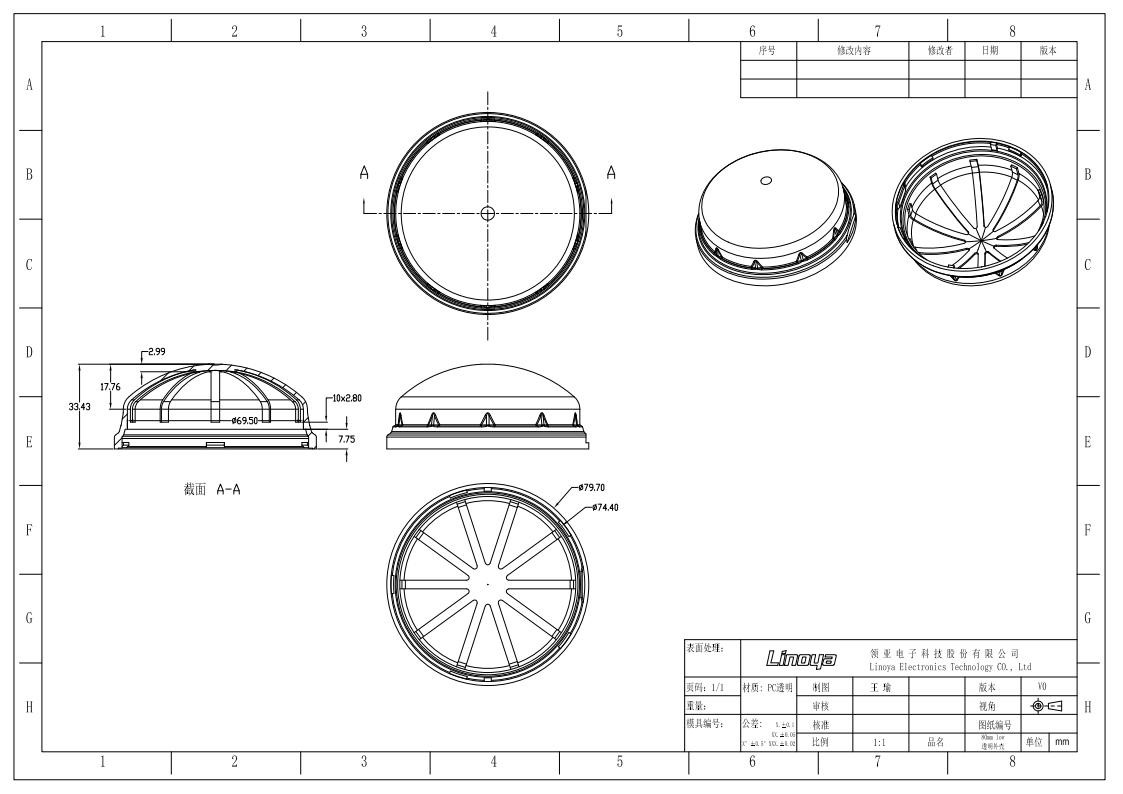

80mm

Dome(low)

product-1-1

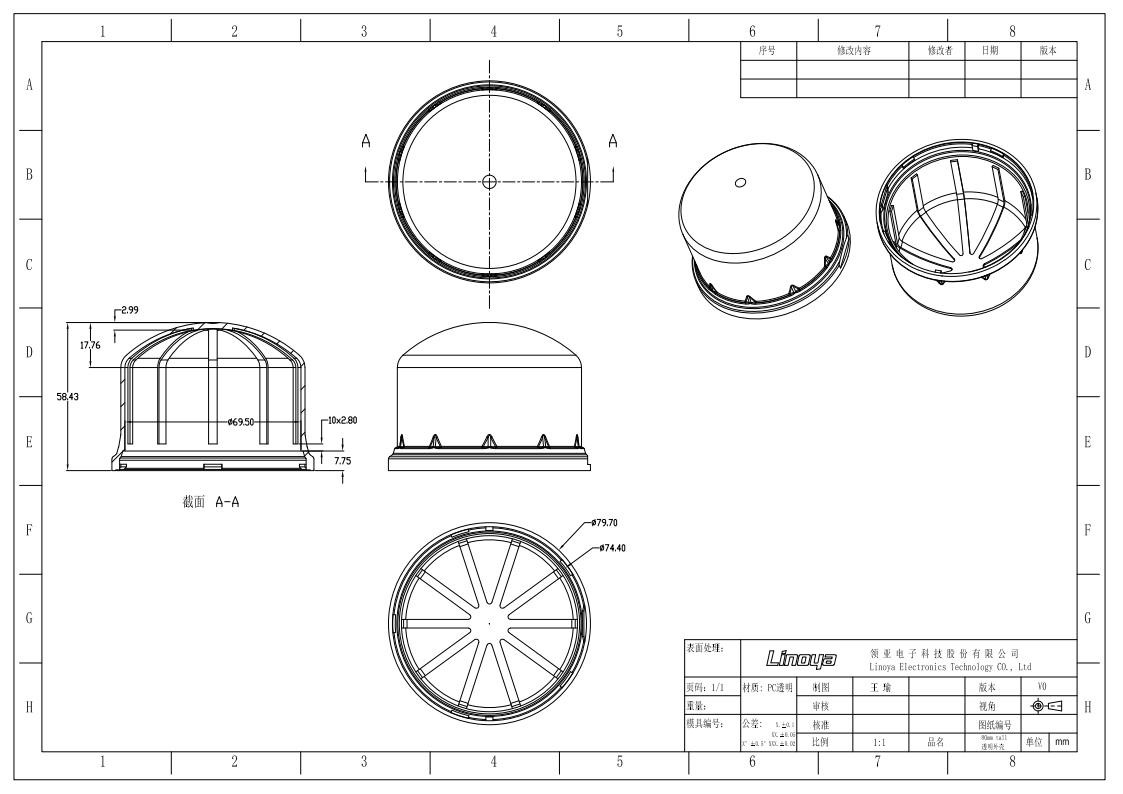

80mm Base

product-1-1

80mm

Dome(tall)



48



49



50



51
