Description
Technical Parameters
| Model | Rated Voltage | Load Power | Failed Mode | Sensor | Color |
|
LYLS240B-BK 3PIN |
100-277Vac | 3300W | ON | CDS | Black |
|
LYLS240B-BU 3PIN |
100-277Vac | 1800W | ON | Photodiode | Blue |
|
LYLS240B-480 3PIN |
300-500Vac | 1800W | ON | Photodiode | Yellow |
|
LYLS240B-DIM 5PIN/7PIN |
100-277Vac | 1800W | ON/OFF | Photodiode | Blue |
Feature
Different brightness thresholds to prevent false triggering
Switching delay to reduce ambient light effects
NEMA interface for compatibility with multiple loads
Customized switch brightness threshold / delay / dimming
IP65 protection level

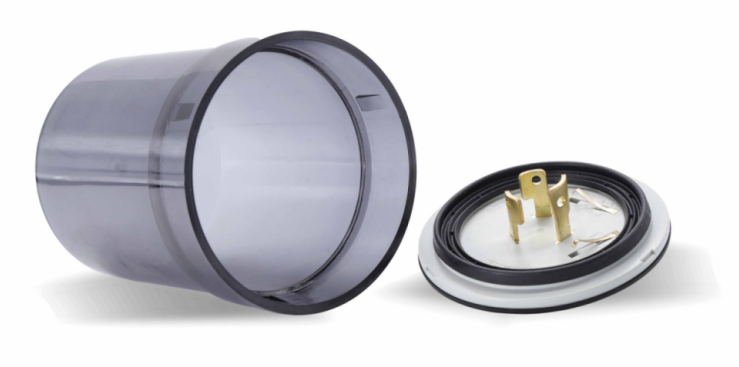

Base and Cover Kits 5pin/7pin
| Model | material | color | high degree | protection class | waterproof rating |
|
LYSLC05Z |
PC |
Black semi-transparent/grey (shell) + Black/grey (base) |
80/102.5mm |
IK08 |
IP66 |
|
LYSLC07Z |
PC |
Black semi-transparent/grey (shell) + Black/grey (base) |
80/102.5mm |
IK08 |
IP66 |
Feature
Remote Control & Dimming
Voltage, current, power factor, power and temperature monitoring, etc.
Intelligent adjustment according to weather and time
IP65 protection level
