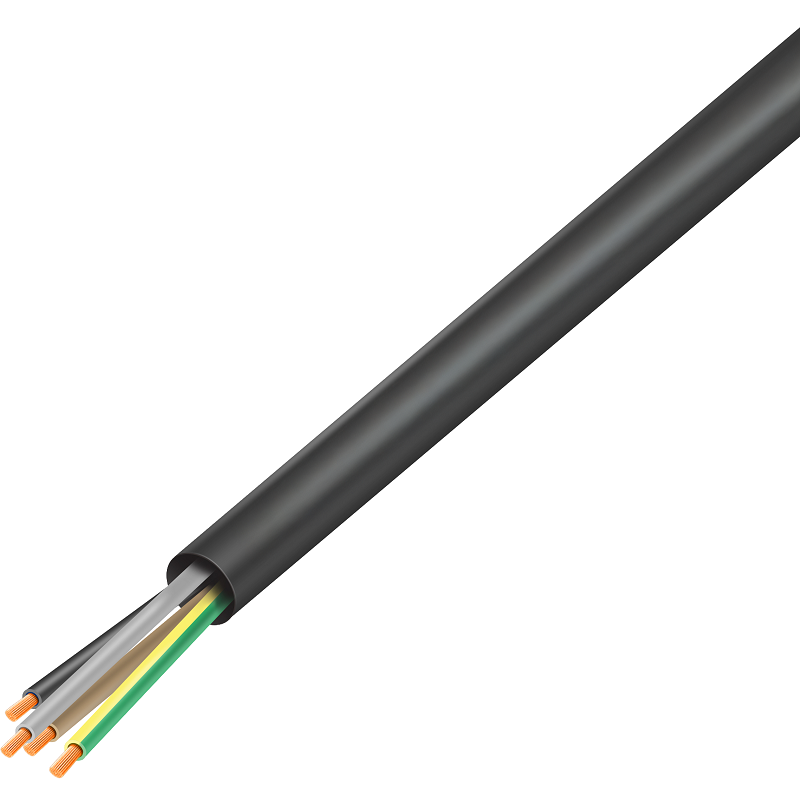

Feature Description
·Bare or tinned stranded copper conductor
·EPR insulation
·CPE/CR jacket
Technical parameters
|
Operating voltage |
300V or 500V |
|
Operating temperature |
-15°C -60°C |
|
Environmental performance |
Compliant with RoHS 2.0 and REACH |
Product Description
|
Type |
Conductor |
Insulation |
Jacket |
Max.Cond.Resist. ohm/km/20℃ |
||||
|
Area (mm²) |
Construction (No./mm) |
Diam.of Single (mm)Max |
Nom. Thick (mm) |
Nom. Thick (mm) |
Diam.(mm) |
Bare copper |
Tinned copper |
|
|
HO5RR-F |
0.75/2C |
24/0.20 |
0.21 |
0.60 |
0.80 |
6.30±0.15 |
26.0 |
26.7 |
|
1.0/2C |
32/0.20 |
0.21 |
0.60 |
0.90 |
6.80±0.15 |
19.5 |
20.0 |
|
|
1.5/2C |
30/0.25 |
0.26 |
0.80 |
1.00 |
8.40±0.15 |
13.3 |
13.7 |
|
|
2.5/2C |
49/0.25 |
0.26 |
0.90 |
1.10 |
9.90±0.15 |
7.98 |
8.21 |
|
|
0.75/3C |
24/0.20 |
0.21 |
0.60 |
0.90 |
6.80±0.15 |
26.0 |
26.7 |
|
|
1.0/3C |
32/0.20 |
0.21 |
0.60 |
0.90 |
7.20±0.15 |
19.5 |
20.0 |
|
|
1.5/3C |
30/0.25 |
0.26 |
0.80 |
1.00 |
8.90±0.15 |
13.3 |
13.7 |
|
|
2.5/3C |
49/0.25 |
0.26 |
0.90 |
1.10 |
10.6±0.20 |
7.98 |
8.21 |
|
|
0.75/4C |
24/0.20 |
0.21 |
0.60 |
0.90 |
7.50±0.15 |
26.0 |
26.7 |
|
|
1.0/4C |
32/0.20 |
0.21 |
0.60 |
0.90 |
7.90±0.15 |
19.5 |
20.0 |
|
|
1.5/4C |
30/0.25 |
0.26 |
0.80 |
1.10 |
10.0±0.20 |
13.3 |
13.7 |
|
|
2.5/4C |
49/0.25 |
0.26 |
0.90 |
1.20 |
11.7±0.20 |
7.98 |
8.21 |
|
|
0.75/5C |
24/0.20 |
0.21 |
0.60 |
1.00 |
8.50±0.15 |
26.0 |
26.7 |
|
|
1.0/5C |
32/0.20 |
0.21 |
0.60 |
1.00 |
9.00±0.15 |
19.5 |
20.0 |
|
|
1.5/5C |
30/0.25 |
0.26 |
0.80 |
1.10 |
10.9±0.20 |
13.3 |
13.7 |
|
|
2.5/5C |
49/0.25 |
0.26 |
0.90 |
1.30 |
13.0±0.20 |
7.98 |
8.21 |
|
|
HO5RN-F |
2x0.75 |
24/0.20 |
0.21 |
0.80 |
0.80 |
6.30±0.15 |
26.0 |
26.7 |
|
2x1.0 |
32/0.20 |
0.21 |
0.90 |
0.90 |
6.80±0.15 |
19.5 |
20.0 |
|
|
2x1.5 |
30/0.25 |
0.21 |
1.00 |
1.00 |
8.40±0.15 |
13.3 |
13.7 |
|
|
2x2.5 |
49/0.25 |
0.21 |
1.10 |
1.10 |
9.90±0.15 |
7.98 |
8.21 |
|
|
3x0.75 |
24/0.20 |
0.21 |
0.90 |
0.90 |
6.80±0.15 |
26.0 |
26.7 |
|
|
3x1.0 |
32/0.20 |
0.21 |
0.90 |
0.90 |
7.20±0.15 |
19.5 |
20.0 |
|
|
3x1.5 |
30/0.25 |
0.21 |
1.00 |
1.00 |
8.90±0.15 |
13.3 |
13.7 |
|
|
3x2.5 |
49/0.25 |
0.21 |
1.10 |
1.10 |
10.60±0.20 |
7.98 |
8.21 |
|
|
4x0.75 |
24/0.20 |
0.21 |
0.90 |
0.90 |
7.50±0.15 |
26.0 |
26.7 |
|
|
4x1.0 |
32/0.20 |
0.21 |
0.90 |
0.90 |
7.90±0.15 |
19.5 |
20.0 |
|
|
4x1.5 |
30/0.25 |
0.21 |
1.10 |
1.10 |
10.0±0.20 |
13.3 |
13.7 |
|
|
4x2.5 |
49/0.25 |
0.21 |
1.20 |
1.20 |
10.70±0.20 |
7.98 |
26.7 |
|
|
5x0.75 |
24/0.20 |
0.21 |
1.00 |
1.00 |
8.50±0.15 |
26.0 |
26.7 |
|
|
5x1.0 |
32/0.20 |
0.21 |
1.00 |
1.00 |
9.00±0.15 |
19.5 |
20.0 |
|
|
5x1.5 |
30/0.25 |
0.21 |
1.10 |
1.10 |
10.90±0.20 |
13.3 |
26.7 |
|
|
5x2.5 |
49/0.25 |
0.21 |
1.30 |
1.30 |
13.00±0.20 |
7.98 |
26.7 |
|
|
AO5RN-F |
4x0.75 |
24/0.20 |
0.210.21 |
1.00 |
1.00 |
7.70±0.15 |
26.0 |
26.7 |
|
HO7RN-F |
1.5/1C |
30/0.25 |
0.26 |
0.80 |
1.40 |
6.00±0.15 |
13.3 |
13.7 |
|
2.5/1C |
49/0.25 |
0.26 |
0.90 |
1.40 |
6.70±0.15 |
7.98 |
8.21 |
|
|
1.012C |
32/0.20 |
0.21 |
0.80 |
1.30 |
8.50±0.15 |
19.5 |
20.0 |
|
|
1.512C |
30/0.25 |
0.26 |
0.80 |
1.50 |
9.40±0.15 |
13.3 |
13.7 |
|
|
2.512C |
49/0.25 |
0.26 |
0.90 |
1.70 |
11.1±0.20 |
7.98 |
8.21 |
|
|
1.0/3C |
32/0.20 |
0.21 |
0.80 |
1.40 |
9.20±0.15 |
19.5 |
20.0 |
|
|
1.513C |
32/0.25 |
0.26 |
0.80 |
1.60 |
10.1±0.20 |
3.3 |
13.7 |
|
|
2.513C |
49/0.25 |
0.26 |
0.90 |
1.80 |
11.9±0.20 |
7.98 |
8.21 |
|
|
1.0/4C |
32/0.20 |
0.21 |
0.80 |
1.50 |
10.1±0.20 |
19.5 |
20.0 |
|
|
1.514C |
30/0.25 |
0.26 |
0.80 |
1.70 |
11.1±0.20 |
13.3 |
13.7 |
|
|
2.5/4C |
49/0.25 |
0.26 |
0.90 |
1.90 |
13.2±0.20 |
7.98 |
8.21 |
|
|
1.0/5C |
32/0.20 |
0.21 |
0.80 |
1.60 |
11.2±0.20 |
19.5 |
20.0 |
|
|
1.515C |
30/0.25 |
0.26 |
0.80 |
1.80 |
12.3±0.20 |
13.3 |
13.7 |
|
|
2.515C |
49/0.25 |
0.26 |
0.90 |
2.00 |
14.4±0.20 |
7.98 |
8.21 |
|
Application areas
It is applied to the regulations of strong electrical equipment and general electric wires. Suitable for outdoor,
household power supply cable and complete sets of wire, all kinds of mobile power tools, refrigeration
equipment, engineering machinery, agricultural machinery and aquarium series electrical equipment and other power supply wire. Weather and oil resistant.
Certification
VDE, UL CCC
