Technical parameters
|
Reference Standard |
UL62 |
|
Certification |
E315620 |
|
Environmental performance |
Compliant with RoHS 2.0 and REACH |

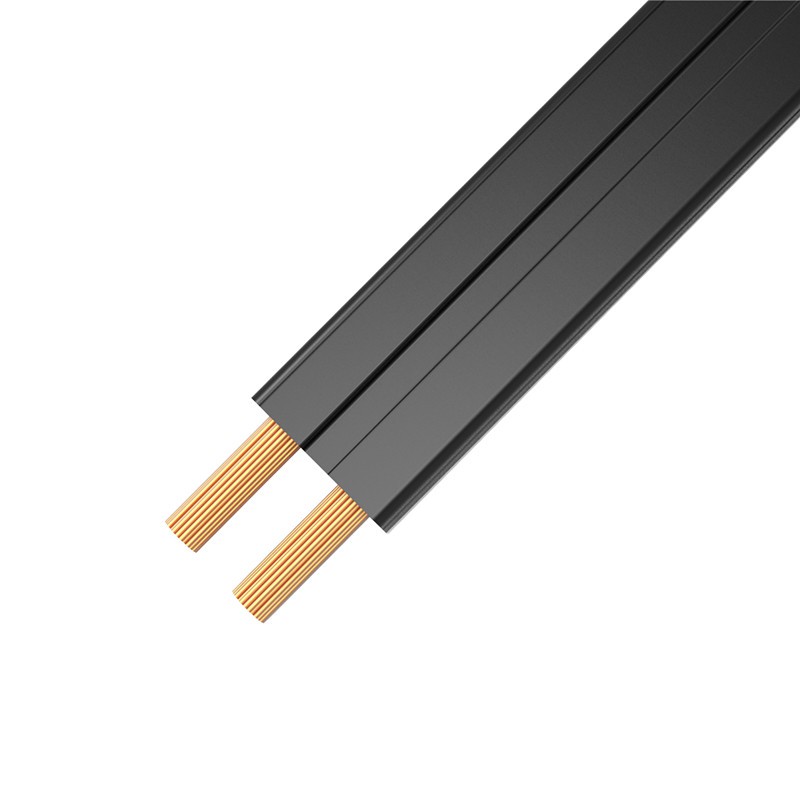

Product Description
|
Style |
Cores |
Conductor |
Insulation |
Dielectric Strength (ACV,1min) |
Maximum Resistance (Ω/km,20℃) |
||||
|
jacket |
|||||||||
|
Size ( AWG ) |
Construction (No/mm) |
Out-Dia. (mm) |
Thick (mm) |
2-Cores |
with drain |
||||
|
SPT-1 |
2 |
18 |
41/0.160 |
1.20 |
0.76 |
2.7X5.4 |
- |
6.66 |
1,600 |
|
3 |
18 |
41/0.160 |
1.20 |
0.76 |
- |
2.7 |
6.66 |
1,600 |
|
|
SPT-1W |
2 |
18 |
41/0.160 |
1.20 |
0.76 |
2.7X5.4 |
- |
6.66 |
1,600 |
|
SPT-1-R |
2 |
18 |
41/0.160 |
1.20 |
0.76 |
2.7X5.4 |
2.7 |
6.66 |
1.600 |
|
SPT-2 SPT-2-R |
2 |
18 |
41/0.160 |
1.20 |
1.14 |
3.5X6.9 |
- |
6.66 |
1,600 |
|
2 |
16 |
65/0.160 |
1.50 |
1.14 |
3.7X7.3 |
- |
4.19 |
1,600 |
|
|
3 |
18 |
41/0.160 |
1.20 |
1.14 |
- |
3.5X8.6 |
6.66 |
1,600 |
|
|
3 |
16 |
65/0.160 |
1.50 |
1.14 |
- |
3.8X9.6 |
4.19 |
1.600 |
|
|
SPT-2W |
2 |
18 |
41/0.160 |
1.20 |
1.14 |
3.5X6.9 |
- |
6.66 |
1,600 |
|
2 |
16 |
65/0.160 |
1.50 |
1.14 |
3.7X7.3 |
- |
4.19 |
1.600 |
|
Application Areas
It is mainly used in homes, commercial places, public facilities and industrial scenarios to provide power transmission connections for various lighting equipment.
