Feature Description

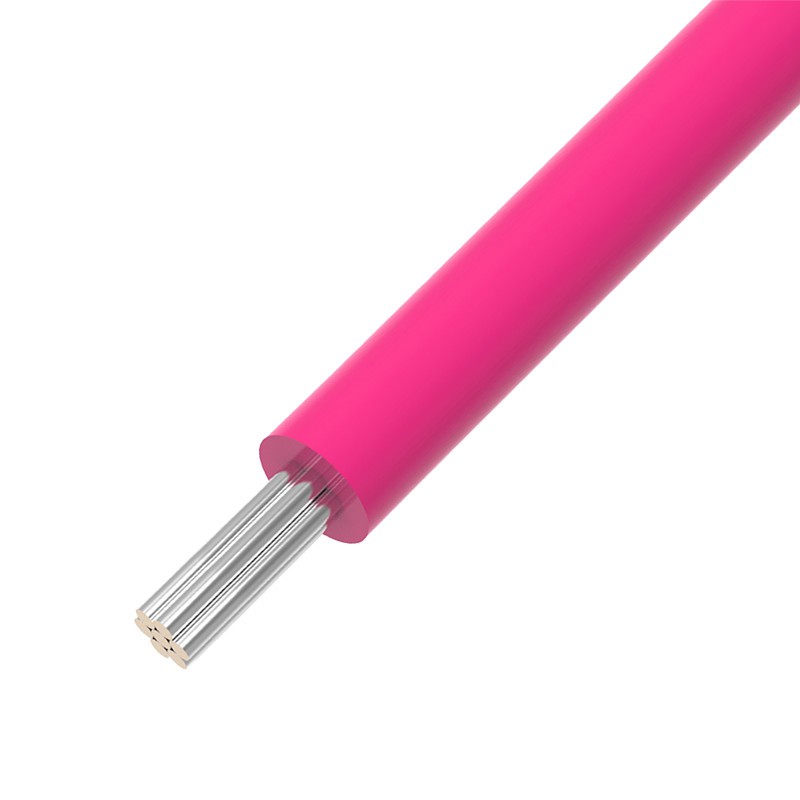

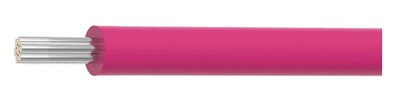

Structure: The core is a conductive copper conductor with an insulating layer on the outside.
Performance: Flexible and easy to bend, wear-resistant and tensile; adaptable to different temperatures.
Application: Used in various scenarios such as home appliances, industry, and communications.
Technical parameters
Reference Standard UL758,UL1581,CSA C22.2 No.210.2
Certification E315618,242699/E315619,242699
Environmental performance Compliant with RoHS 2.0 and REACH
Product Description
|
File Number |
Cond min |
Cond max |
Temperature (°C) |
Voltage (V) |
Insulation |
|
1007 |
32 AWG |
16 AWG |
80 |
300 (AC) |
PVC |
|
1010 |
28 AWG |
12 AWG |
105 |
300 (AC) |
PVC |
|
10168 |
30 AWG |
10 AWG |
80,90,105 |
300 (AC) |
PVC |
|
1015 |
30 AWG |
2000kcmils |
80,90,105 |
600 (AC)/750 (DC) |
PVC |
|
1028 |
22 AWG |
6 AWG |
105 |
600 (AC) |
PVC |
|
1056 |
20 AWG |
10 AWG |
105 |
600 (AC) |
PVC |
|
1095 |
30 AWG |
16 AWG |
80 |
300 (AC) |
PVC |
|
1284 |
8 AWG |
1000 kcmil |
105 |
600 (AC) |
PVC |
|
1316 |
26 AWG |
12 AWG |
90 |
600 (AC) |
PVC |
|
1452 |
26 AWG |
12 AWG |
90 |
1000 (AC) |
PVC |
|
1500 |
26 AWG |
9 AWG |
105 |
600 (AC) |
PVC |
|
1569 |
30 AWG |
2 AWG |
80,90,105 |
300 (AC) |
PVC |
|
1674 |
30 AWG |
12 AWG |
105 |
300 (AC) |
PVC |
|
1731 |
50 AWG |
10 AWG |
105 |
300 (AC) |
PVC |
|
1792 |
40 AWG |
N/A |
80 |
30 (AC) |
PVC |
|
10198 |
30 AWG |
4/0 AWG |
105 |
300 (AC) |
PVC |
|
10269 |
30 AWG |
2000kcmil |
80,90,105 |
1000(AC)/1250(AC) |
PVC |
|
10272 |
36 AWG |
20 AWG |
80 |
150(AC) |
PVC |
|
10918 |
32 AWG |
10 AWG |
105 |
600 (AC) |
PVC |
|
10958 |
30 AWG |
10 AWG |
105 |
600 (AC) |
PVC |
|
11627 |
30 AWG |
2000 kcmil |
105 |
2000(AC)/2000(DC) |
PVC |
|
20080 |
40 AWG |
N/A |
60,80,90,105 |
30 (AC) |
PVC |
|
20288 |
18 AWG |
12 AWG |
60,75,80,90,105 |
300 (AC) |
PVC |
|
2468 |
32 AWG |
16 AWG |
80 |
300 (AC) |
PVC |
|
2651 |
36 AWG |
14 AWG |
105 |
300 (AC) |
PVC |
|
2689 |
N/A |
N/A |
60 |
30 (AC) |
PVC |
|
2877 |
40 AWG |
16 AWG |
80 |
300 (AC) |
PVC |
|
20058 |
40 AWG |
18 AWG |
60,80 |
30 (AC) |
PVC |
|
1430 |
30 AWG |
16 AWG |
105 |
300 (AC) |
XLPVC |
|
1431 |
30 AWG |
1000 kcmil |
105 |
600 (AC) |
XLPVC |
|
3443 |
32 AWG |
14 AWG |
105 |
300 (AC) |
XLPVC |
|
3443 |
32 AWG |
14 AWG |
105 |
300 (AC) |
XLPVC |
|
1061 |
30 AWG |
14 AWG |
80 |
300 (AC) |
SRPVC |
|
10071 |
36 AWG |
18 AWG |
80 |
300 (AC) |
SRPVC |
|
3071 |
18 AWG |
13 AWG |
200 |
600 (AC) |
SR |
|
3074 |
12 AWG |
12 AWG |
200 |
600 (AC) |
SR |
|
3122 |
26 AWG |
16 AWG |
200 |
300 (AC) |
SR |
|
3132 |
30 AWG |
4/0 AWG |
150 |
300 (AC) |
SR |
|
3133 |
30 AWG |
4/0 AWG |
150 |
600 (AC) |
SR |
|
3135 |
26 AWG |
12 AWG |
200 |
600 (AC) |
SR |
|
3367 |
26 AWG |
10 AWG |
200 |
300 (AC) |
SR |
|
3512 |
0.3 - 250 SQ mm |
200 |
600 (AC) |
SR |
|
|
3239 |
24 AWG |
10 AWG |
105 |
3000 (AC) |
SR |
|
1617 |
N/A |
N/A |
105 |
600 (AC) |
Labeled |
|
1618 |
N/A |
N/A |
80 |
300 (AC) |
Labeled |
|
1672 |
N/A |
N/A |
105 |
300 (AC) |
Labeled |
|
2474 |
N/A |
N/A |
105 |
600 (AC) |
Labeled |
|
2476 |
N/A |
N/A |
80 |
300 (AC) |
Labeled |
|
2598 |
N/A |
N/A |
60 |
300 (AC) |
Labeled |
|
2734 |
N/A |
N/A |
80 |
30 (AC) |
Labeled |
|
10981 |
30 AWG |
16 AWG |
80 |
300 (AC) |
MPPE-PE |
|
11027 |
40 AWG |
10 AWG |
105 |
300 (AC) |
MPPE |
|
11030 |
40 AWG |
10 AWG |
105 |
90 (AC) |
MPPE |
|
21458 |
32 AWG |
16 AWG |
80 |
300 (AC) |
MPPE-PE |
|
21515 |
36 AWG |
14 AWG |
105 |
300 |
MPPE |
|
21516 |
36 AWG |
14 AWG |
105 |
600(AC) |
MPPE |
|
10255 |
36 AWG |
N/A |
60,80 |
30 (AC) |
TPE |
|
10439 |
32 AWG |
16 AWG |
80 |
300 (AC) |
TPE |
|
1631 |
40 AWG |
N/A |
60,80 |
30 (AC) |
PE |
|
1354 |
44 AWG |
N/A |
60,80 |
30 (AC) |
Solid PE or FRPR,Solid FEP or PVC,FEP |
|
1375 |
36 AWG |
N/A |
60,80 |
30 (AC) |
Non-irradiated solid PE |
|
1516 |
36 AWG |
10 AWG |
105 |
0 (AC) |
ETFE |
|
1640 |
40 AWG |
N/A |
80 |
30 (AC) |
PE,Polyester,PP,XLPE |
|
1691 |
40 AWG |
N/A |
80 |
30 (AC) |
PE,XLPE |
|
10446 |
36 AWG |
16 AWG |
80 |
300 (AC) |
FRPE ,PE |
|
10466 |
36 AWG |
16 AWG |
60,80 |
300 (AC) |
PP |
|
10602 |
40 AWG |
10 AWG |
80 |
300 (AC) |
FRPE |
|
21311 |
32 AWG |
16 AWG |
80 |
300 (AC) |
FRPE,PE |
|
2896 |
42AWG |
12 AWG |
80 |
30 (AC) |
PVC,PET,Polyester,PI, |
|
20624 |
42AWG |
12 AWG |
80 |
60 (AC) |
PVC,PETP,polyester,polyimide |
|
20696 |
40 AWG |
14 AWG |
80 |
30 (AC) |
Polyester |
|
20798 |
40 AWG |
1000 kcmil |
80 |
60 (AC) |
PET |
Application Areas
·Suitable for internal wiring of electronic and electrical equipment.
