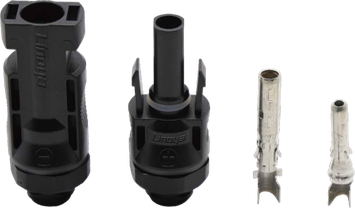

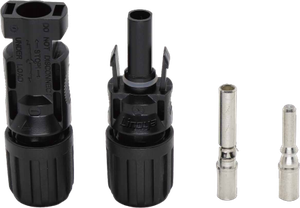

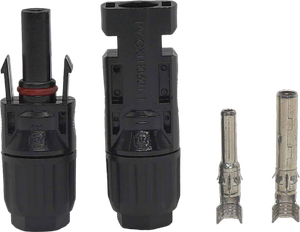

PV CONNECTOR

LY-PV001

LY-PV002

LY-PV003

LY-PV004

LY-PV005

LY-PV006

产品型号Product No

绝缘材料Insulation material

额定电流Rated current

额定电压Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料Contact material

防水等级Water proof Degree

防火等级Flame class

安全等级Safety degree

使用材料最高温度Material RTI

使用环境温度

Ambient temperature range

适配线缆规格Suitable wire size range

端子直径

Pin dimensions

标准Standard

LY-PV001

sabic PPO/PA

30A

1000V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 6mm2

Φ4.0mm

IEC62852

LY-PV002

sabic PPO/PA

30A

1000V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 4mm2

Φ4.0mm

IEC62852

LY-PV003

sabic PPO/PA

30A

1000V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 6mm2

Φ4.0mm

IEC62852

LY-PV004

sabic PPO/PA

30A

1500V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 6mm2

Φ4.0mm

IEC62852

LY-PV005

sabic PPO/PA

30A

1500V

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP68

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 4mm2

Φ4.0mm

IEC62852

LY-PV006

sabic PPO/PA

30A

1500V

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP68

UL94-V0

Class II

110°C

-40°C ~ +85°C

2.5mm2~ 6mm2

Φ4.0mm

IEC62852

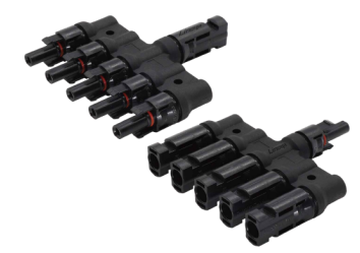

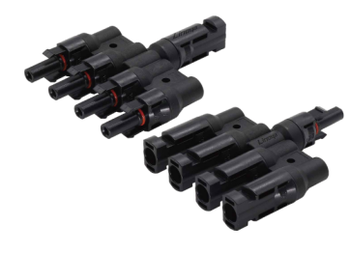

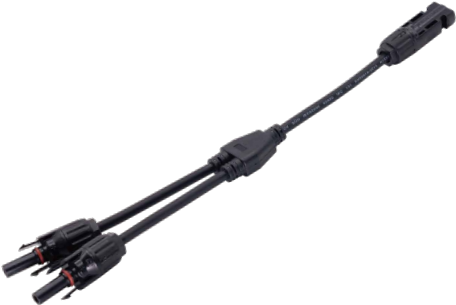

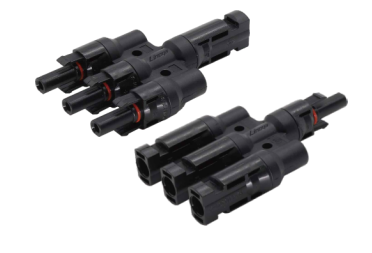

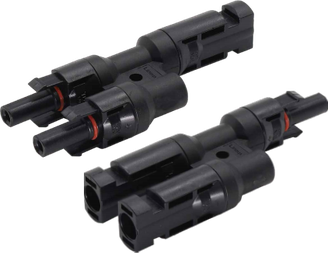

PV BRANCH CONNECTOR

LY-PV007

LY-PV008

LY-PV009

LY-PV010

产品型号Product No

绝缘材料

Insulation material

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防水等级

Water proof Degree

防火等级Flame class

安全等级Safety degree

使用材料最高温度Material RTI

使用环境温度

Ambient temperature range

端子直径

Pin dimensions

标准Standard

LY-PV007

PC

30A

1000V DC

6KV(50Hz.Imin)

≤1mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +90°C

Φ4.0mm

IEC62852

LY-PV008

PC

30A

1000V DC

6KV(50Hz.Imin)

≤1mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

Φ4.0mm

IEC62852

LY-PV009

PC

30A

1000V DC

6KV(50Hz.Imin)

≤1.8mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

Φ4.0mm

IEC62852

LY-PV010

PC

40A

1000V DC

6KV(50Hz.Imin)

≤2mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

Φ4.0mm

IEC62852

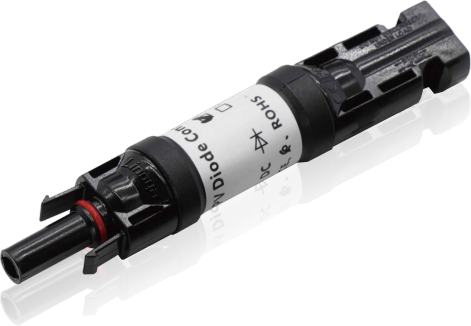

PV DIODE CONNECTOR

product-471-326

LY-PV011

产品型号

Product No.

绝缘材料

Insulation material

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防水等级

Water proof Degree

防火等级

Flame class

安全等级

Safety degree

使用材料最高温度

Material RTI

使用环境温度

Ambient temperature range

标准

Standard

LY-PV011

PC

10A,15A,20A

1000V /1500V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

IEC62852

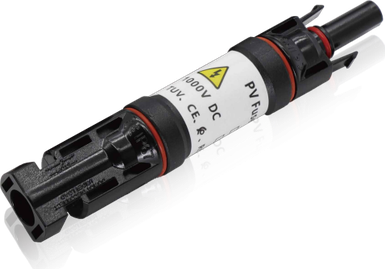

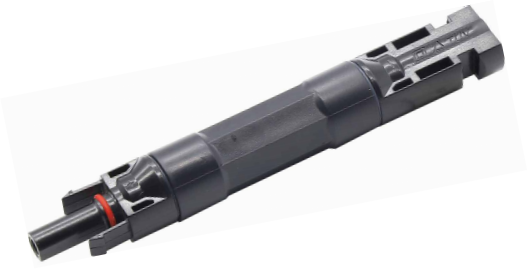

PV FUSE CONNECTOR

LY-PV012

LY-PV013

产品型号

Product No.

绝缘材料

Insulation material

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防水等级

Water proof Degree

防火等级Flame class

安全等级

Safety degree

使用材料最高温度Material RTI

使用环境温度

Ambient temperature range

标准Standard

LY-PV012

PPO

10-30A

1000V /1500V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

IEC62852

LY-PV013

sabic PPO/PA

10A-30A

1500VDC

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

IP67

UL94-V0

3A,5A,8A,10A,12A, 15A,20A,25A,30A

Class II

-40°C ~ +85°C

IEC62852

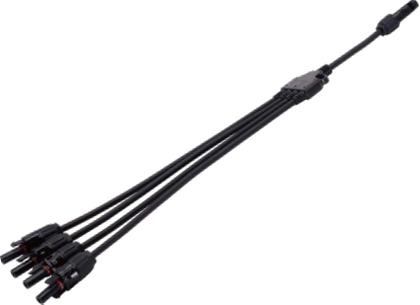

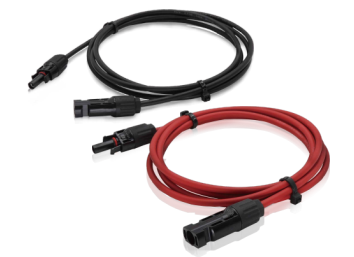

PV WIRING HARNESSES

product-456-305

LY-PV014

LY-PV015

LY-PV016

产品型号

Product No

绝缘材料

Insulation material

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防水等级

Water proof Degree

防火等级

Flame class

安全等级

Safety degree

使用材料最高温度

Material RTI

使用环境温度

Ambient temperature range

标准

Standard

LY-PV014

PPO/XLPE

30A

1000V DC

6KV(50Hz.Imin)

≤2mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

IEC62852

LY-PV015

PPO/XLPE

30A

1000V DC

6KV(50Hz.Imin)

≤2.5mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

IEC62852

LY-PV016

PPO/XLPE

30A

1000V DC

6KV(50Hz.Imin)

≤4mΩ

copper.Tin plated

IP67

UL94-V0

Class II

110°C

-40°C ~ +85°C

IEC62852

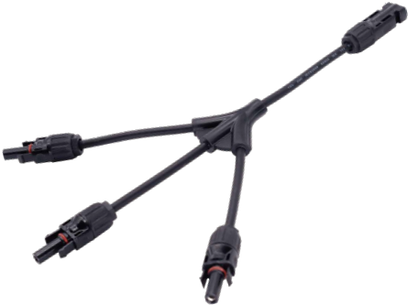

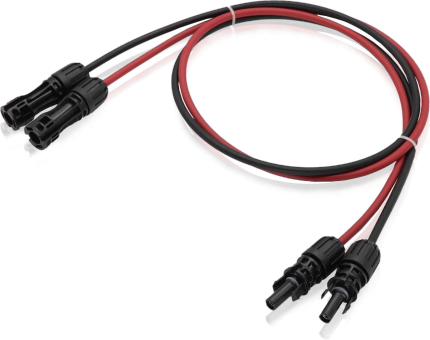

PV WIRING HARNESSES

LY-PV017

LY-PV018

产品型号

Product No.

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防火等级

Flame class

安全等级

Safety degree

使用材料最高温度

Material RTI

使用环境温度

Ambient temperature range

光伏电线长度

PV Cable Length

适配线缆规格

Suitable wire size range

LY-PV017

20A~30A

1000V

6KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

UL94-V0

Class II

110°C

-40°C ~ +85°C

按客户规定/User deﬁned

2.5mm²~ 6mm² (14~10AGW)

LY-PV018

20A~30A

1500V

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

UL94-V0

Class II

110°C

-40°C ~ +85°C

按客户规定/User deﬁned

2.5mm²~ 6mm² (14~10AGW)

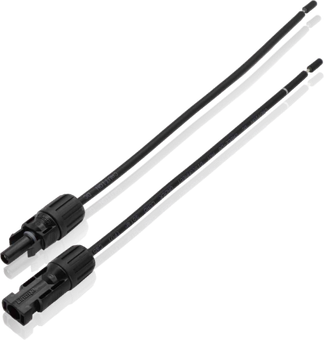

PV WIRING HARNESSES

LY-PV019

LY-PV020

产品型号

Product No.

额定电流

Rated current

额定电压

Rated voltage

测试电压

Test voltage

接触电阻

Typical contact resistance

导体材料

Contact material

防火等级

Flame class

安全等级

Safety degree

使用材料最高温度

Material RTI

使用环境温度

Ambient temperature range

光伏电线长度

PV Cable Length

适配线缆规格

Suitable wire size range

LY-PV019

20A~30A

1500V

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

UL94-V0

Class II

110°C

-40°C ~ +85°C

按客户规定/User deﬁned

2.5mm²~ 6mm² (14~10AGW)

LY-PV020

20A~30A

1500V

8KV(50Hz.Imin)

≤0.5mΩ

copper.Tin plated

UL94-V0

Class II

110°C

-40°C ~ +85°C

按客户规定/User deﬁned

2.5mm²~ 6mm² (14~10AGW)
