Technical parameters
|
Reference Standard |
UL4703,UL1581,CSA C22.2 No.210.2 |
|
Certification |
TUV /UL |
|
Environmental performance |
Compliant with RoHS 2.0 and REACH |

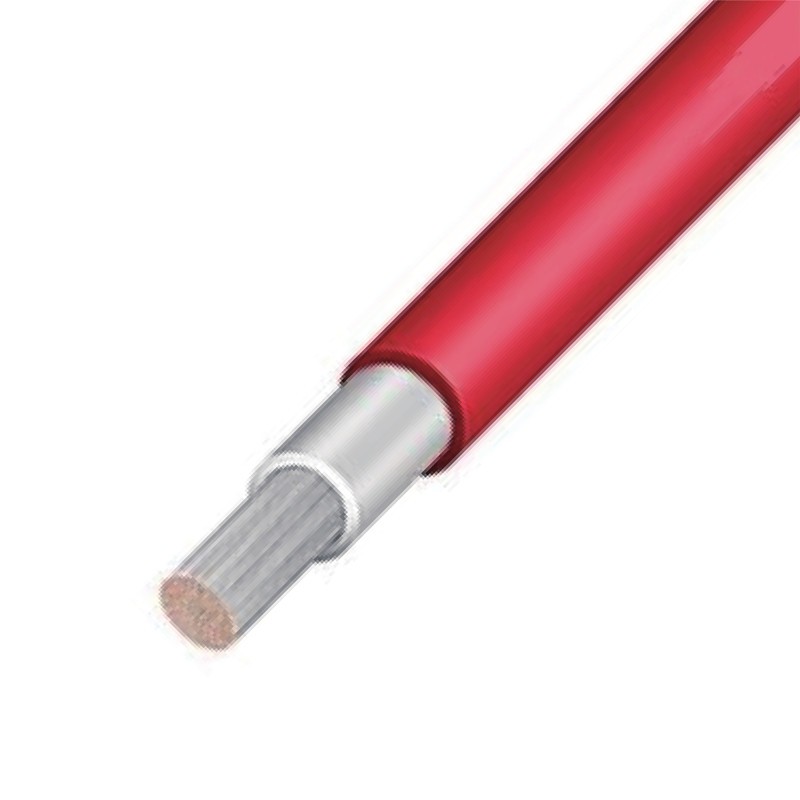

Product Description
|
Product range |
Specification |
Conductor stranded OD |
Insulation thickness |
Sheath thickness |
Finish OD |
|
H1Z2Z2-K |
1×1.5mm2 |
1.58 |
0.70 |
0.80 |
5.40 |
|
1×2.5mm2 |
2.04 |
0.70 |
0.80 |
5.90 |
|
|
1×4mm2 |
2.60 |
0.70 |
0.80 |
6.60 |
|
|
1×6mm2 |
3.18 |
0.70 |
0.80 |
7.40 |
|
|
1×10mm2 |
4.07 |
0.70 |
0.80 |
8.80 |
|
|
1×16mm2 |
5.23 |
0.70 |
0.90 |
10.10 |
|
|
1×25mm2 |
6.50 |
0.90 |
1.0 |
12.50 |
|
|
1×35mm2 |
7.70 |
0.90 |
1.10 |
14.0 |
|
|
1×50mm2 |
9.0 |
1.0 |
1.20 |
16.30 |
|
|
1×70mm2 |
10.8 |
1.10 |
1.20 |
18.70 |
|
|
1×95mm2 |
12.6 |
1.10 |
1.30 |
20.80 |
|
|
1×120mm2 |
14.2 |
1.20 |
1.30 |
22.80 |
|
|
2×1.5mm2 |
1.58 |
0.70 |
0.80 |
5.4×11.2 |
|
|
2×2.5mm2 |
2.04 |
0.70 |
0.80 |
5.9×12.4 |
|
|
2×4mm2 |
2.60 |
0.70 |
0.80 |
6.6×13.8 |
|
|
2×6mm2 |
3.18 |
0.70 |
0.80 |
7.4×15.4 |
|
|
2×10mm2 |
4.07 |
0.70 |
0.80 |
8.8×18.5 |
|
|
2×16mm2 |
5.23 |
0.70 |
0.90 |
10.1×21.1 |
|
|
2×25mm2 |
6.50 |
0.90 |
1.0 |
12.5×26.0 |
|
|
2×35mm2 |
7.70 |
0.90 |
1.10 |
14.0×29.2 |
|
|
PV |
18AWG |
1.18 |
1.90 |
5.0 |
5.20 |
|
16AWG |
1.49 |
1.90 |
5.50 |
6.20 |
|
|
14AWG |
1.88 |
1.90 |
5.90 |
6.60 |
|
|
12AWG |
2.04 |
1.90 |
6.40 |
7.10 |
|
|
10AWG |
3.0 |
1.90 |
7.20 |
7.90 |
|
|
8AWG |
3.80 |
2.41 |
9.0 |
9.50 |
|
|
6AWG |
4.78 |
2.41 |
10.1 |
10.60 |
|
|
4AWG |
5.95 |
2.41 |
11.5 |
12.0 |
|
|
2AWG |
7.56 |
2.41 |
13.3 |
13.80 |
|
|
1AWG |
8.50 |
2.79 |
15.5 |
15.90 |
|
|
1/0AWG |
9.48 |
2.79 |
16.6 |
17.20 |
|
|
2/0AWG |
10.80 |
2.79 |
17.9 |
18.50 |
|
|
3/0AWG |
12.0 |
2.79 |
19.5 |
20.0 |
|
|
4/0AWG |
14.08 |
2.79 |
21.2 |
21.80 |
|
|
18AWG |
1.18 |
0.76 |
0.76 |
4.20 |
|
|
16AWG |
1.49 |
0.76 |
0.76 |
4.50 |
|
|
14AWG |
1.88 |
0.76 |
0.76 |
4.90 |
|
|
12AWG |
2.04 |
0.76 |
0.76 |
5.10 |
|
|
10AWG |
3.0 |
0.76 |
0.76 |
6.0 |
|
|
8AWG |
3.80 |
1.14 |
0.76 |
8.30 |
|
|
6AWG |
4.78 |
1.14 |
1.14 |
9.30 |
|
|
4AWG |
5.95 |
1.14 |
1.14 |
10.50 |
|
|
2AWG |
7.56 |
1.14 |
1.14 |
12.10 |
|
|
1AWG |
8.50 |
1.40 |
1.52 |
14.35 |
|
|
1/0AWG |
9.48 |
1.40 |
1.52 |
15.40 |
|
|
2/0AWG |
10.80 |
1.40 |
1.52 |
16.60 |
|
|
3/0AWG |
12.0 |
1.40 |
1.52 |
17.80 |
|
|
4/0AWG |
14.08 |
1.40 |
1.52 |
20.0 |
Application Areas
·Suitable for use on the DC side of PV systems, as well as in AC voltage systems with a rated power frequency voltage of 0.6/1 kV in PV systems. Directly convert solar energy into electricity in a PV system. The cable is UV resistant, temperature resistant, and can be used as a separate connection to a solar battery.
