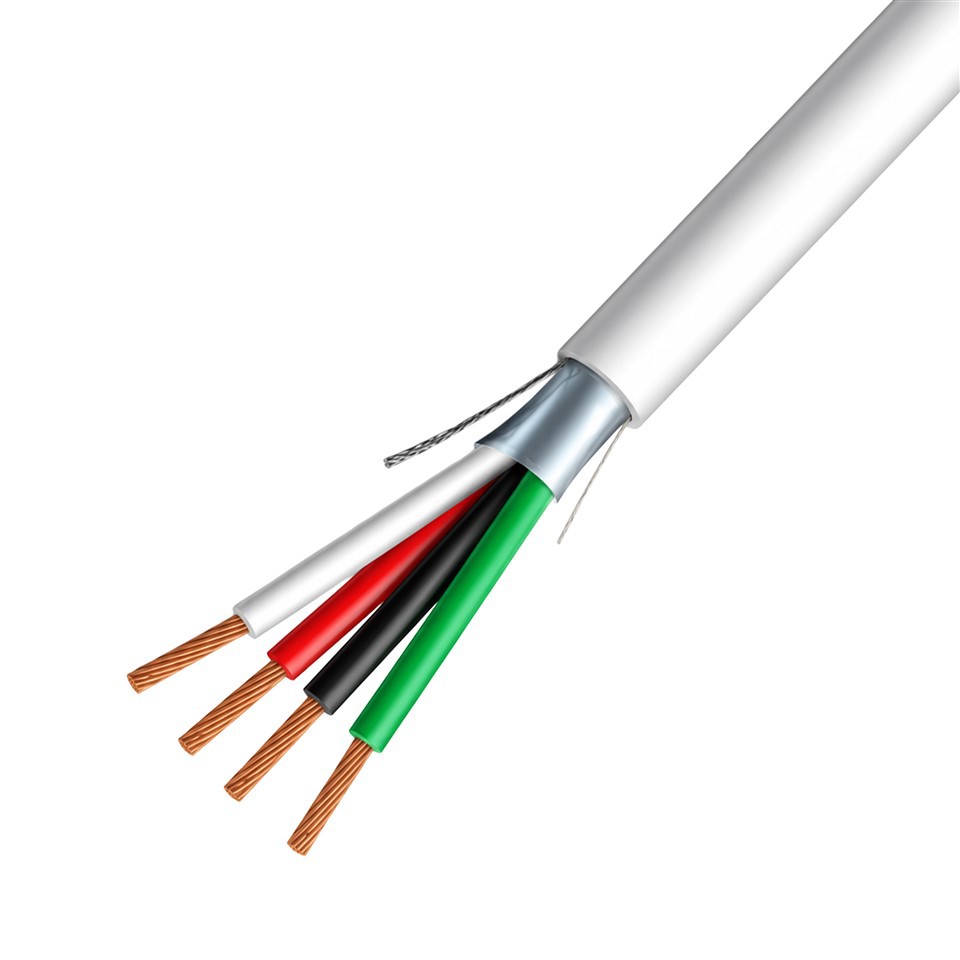

Feature Description

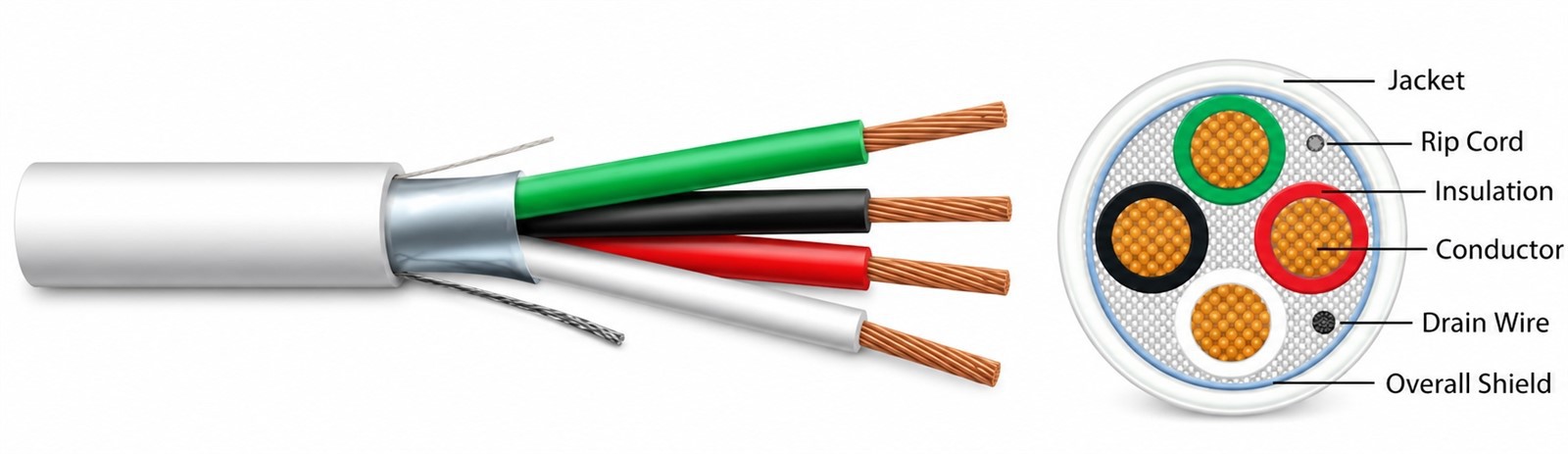

▸Installfriendly ▸RhinoPac®packagingpreventscabletangling,crushing,andwaterdamage ▸Aripcordunderneaththejacketprovidesforeasyremovalatinstallation ▸Testedphysically&electricallyinaccordancewithNECstandards ▸Legendmarkingsforchannels,rooms,andzonestosaveinstallationtime ▸E-Zfootagemarkingwithascendinganddescendingorder ▸Sunlightresistant&RoHScompliant ▸Freefromrestrictedmetalsandhazardouscompounds.Checkourgreenleaflabelformoreinformation ▸Combineindoor/outdoorapplicationsintooneproduct.ComplieswithUL1581sunlightresistancerequirementforo utdoorinstallations.(DonotuseasasubstituteforUndergroundDirectBurialCables)
Technical parameters
|
Operating voltage |
300/500V and below |
|
Operating temperature |
-20°C ~ +75°C |
|
Environmental performance |
RoHS Compliant / LSZH Optional |
Technical Parameters
| Specification | Number of Conductors n | Conductor Cross-sectional Area and Structure mm²/Qty/mm | Nominal Outer Diameter mm | Nominal Weight kg/km | Electrical Characteristics Nominal Conductor DC Resistance (20℃) Ω/km | |
|
1 |
2×0.75 |
2 |
0.75/42/0.15 | 5.7 | 38.0 | 22.98 |
|
2 |
2×1.5 |
2 |
1.5/48/0.20 | 6.7 | 64.8 | 11.49 |
|
3 |
2×2.0 |
2 |
2.0/64/0.20 | 8.3 | 82.4 | 8.62 |
|
4 |
2×2.5 |
2 |
2.5/77/0.20 | 9 | 99.1 | 6.9 |
|
5 |
2×4.0 |
2 |
4.0/126/0.20 | 11.2 | 158.2 | 4.31 |
|
6 |
2×6.0 |
2 |
6.0/189/0.20 | 13.6 | 233.3 | 2.87 |
|
7 |
4×2.0 |
4 |
2.0/64/0.20 | 10 | 150.0 | 8.62 |
|
8 |
4×2.5 |
4 |
2.5/77/0.20 | 11.2 | 188.5 | 6.9 |
|
9 |
4×4.0 |
4 |
4.0/126/0.20 | 13.6 | 288.8 | 6.9 |
|
10 |
6×2.5 |
6 |
2.5/77/0.20 | 13.2 | 264.8 | 6.9 |
|
11 |
6×4.0 |
6 |
4.0/126/0.20 | 16.3 | 421.0 | 4.31 |
|
12 |
8×2.5 |
8 |
2.5/77/0.20 | 15.0 | 365.0 | 6.9 |
Product Description
|
Serial number Model |
Approximate wire diameter (mm) |
Theoretical cable weight (Kg/Km) |
|
|
1 |
Transparent Speaker Cable 200 Core |
3.5*7.2 |
55 |
|
2 |
Transparent Speaker Cable 300 Core |
3.8*7.8 |
65 |
|
3 |
Transparent Speaker Cable 400 Core |
4.3*8.8 |
100 |
|
4 |
Transparent Speaker Cable 600 Core |
4.8*9.8 |
125 |
|
5 |
Transparent Speaker Cable 800 Core |
5.3*10.8 |
150 |
|
6 |
HTX-100 Dual-Core Sleeve Cable |
6.0 |
50 |
|
7 |
Audio/Video HD-SDK |
2.8 |
65 |
|
8 |
Outdoor Podium Speaker Cable 2 x 1.0mm² |
7.0 |
25 |
|
9 |
Outdoor Podium Speaker Cable 2 x 1.5mm² |
8.1 |
30 |
|
10 |
Outdoor Podium Speaker Cable 2 x 2.5mm² |
9.4 |
45 |
|
11 |
American Standard Speaker Cable 18AWG x 2C |
4.5 |
28 |
|
12 |
American Standard Speaker Cable 16AWG x 2C |
5.1 |
40 |
|
13 |
American Standard Speaker Cable 16AWG x 4C |
6.3 |
75 |
|
14 |
American Standard Speaker Cable 14AWG x 2C |
6.2 |
60 |
|
15 |
American Standard Speaker Cable 14AWG x 4C |
7.5 |
110 |
|
16 |
American Standard Speaker Cable 12AWG x 2C |
7.7 |
88 |
Application Areas
WiringBurglarAlarm,PublicAddressSystems,Intercoms,TelephoneStations,Communications,Instrumentation,AccessControl,NurseCall,Security,andotherLowVoltageCircuitsthatarePower-LimitedApplications
