Description
Technical Parameters
Feature Description
- Structure: Mostly composed of 8 copper core wires, divided into 4 twisted pairs, with an insulating sheath on the outer layer, and some with a shielding layer.
- Performance: The twisted pair design reduces interference, supports high-speed data transmission, and features stable transmission and strong anti-interference capability.
Technical parameters
|
Certification |
E320763/ETL/UL/CPR |
|
Flame retardant |
CM/CMG/CMR/CMP,Eca/Dca/B2ca |
|
Reference standards |
TA,EIA568-C.2,EN5017381E0,EC11801,GB/T 18015.5 |
Product Description
|
MODEL |
JACKET |
AWG |
Reference standard |
|
CAT5E U/UTP |
PVC/LSZH/LDPE |
24AWG |
TA/EIA568-C.2/ EN5017381E0/ EC11801/YD-T1019 |
|
CAT5E F/UTP |
PVC/LSZH/LDPE |
24AWG |
|
|
CAT5E SF/UTP |
PVC/LSZH/LDPE |
24AWG |
|
|
CAT6 U/UTP |
PVC/LSZH/LDPE |
24AWG/23AWG |
|
|
CAT6 F/UTP |
PVC/LSZH/LDPE |
24AWG/23AWG |
|
|
CAT6 SF/UTP |
PVC/LSZH/LDPE |
24AWG/23AWG |
|
|
CAT6A U/UTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT6A SF/UTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT6A U/FTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT6A F/FTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT7 SF/UTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT7 F/FTP |
PVC/LSZH/LDPE |
23AWG |
|
|
CAT7A SF/UTP |
PVC/LSZH/LDPE |
22AWG |
|
|
CAT7A F/FTP |
PVC/LSZH/LDPE |
22AWG |
|
|

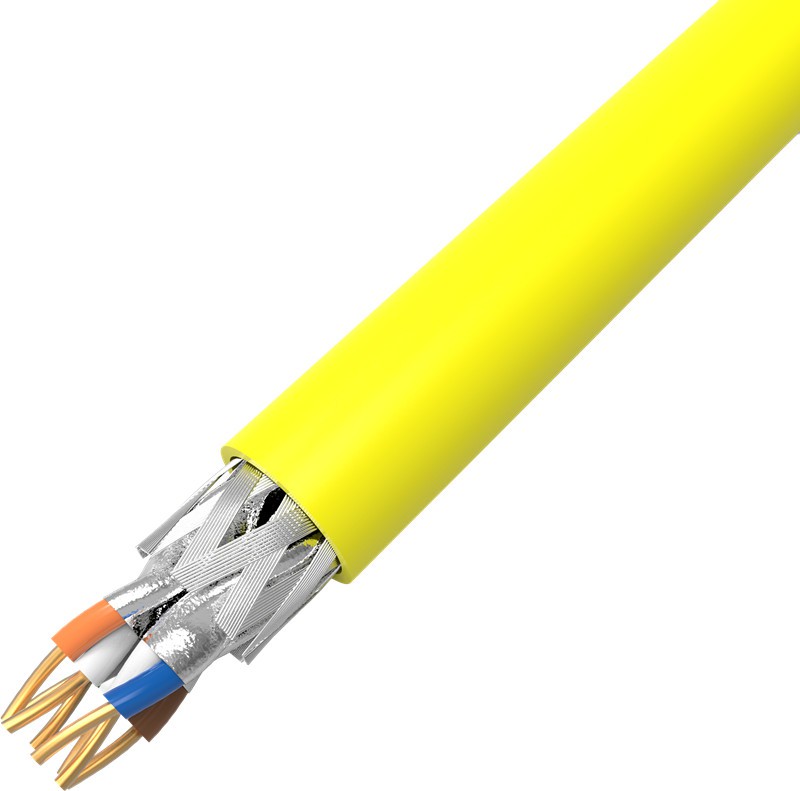

CAT8 SF/UTP |
PVC/LSZH/LDPE |
22AWG |
|
|
CAT8 F/FTP |
PVC/LSZH/LDPE |
22AWG |
Application Areas
- It is mainly used in areas that require stable, high-speed wired data transmission.
