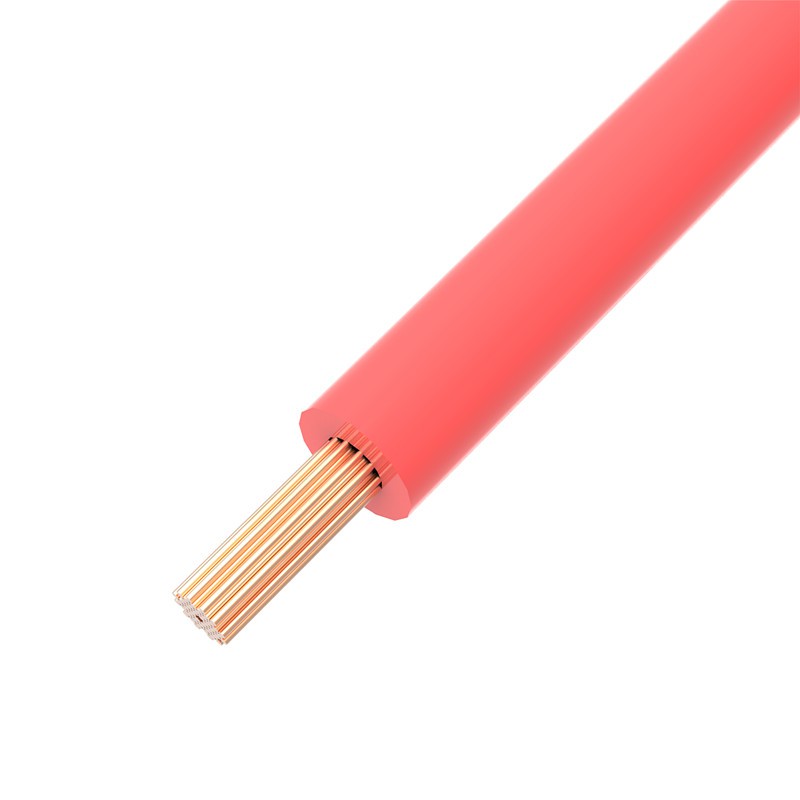

Technical parameters
|
Reference Standard |
UL758,UL1581,CSA C22.2 No.210.2 |
|
Certification |
E315618,242699/E315619,242699 |
|
Environmental performance |
Compliant with RoHS 2.0 and REACH |
Teflon Wire
|
File Number |
Cond min |
Cond max |
Temperature (°C) |
Voltage (V) |
Insulation |
||||||
|
10045 |
36 AWG |
14 AWG |
150 |
0 (AC) |
FEP |
||||||
|
10050 |
30 AWG |
4/0 AWG |
150 |
600 (AC) |
FEP |
||||||
|
10064 |
40 AWG |
N/A |
105 |
30 (AC) |
FEP |
||||||
|
10111 |
40 AWG |
N/A |
105 |
90 (AC) |
FEP |
||||||
|
10308 |
n/a |
N/A |
200 |
600 (AC) |
FEP |
||||||
|
10331 |
36 AWG |
10 AWG |
150/200 |
300 (AC) |
FEP |
||||||
|
1330 |
30 AWG |
4/0 AWG |
200 |
600 (AC) |
FEP |
||||||
|
1331 |
30 AWG |
4/0 AWG |
150 |
600 (AC) |
FEP |
||||||
|
1332 |
30 AWG |
10 AWG |
200 |
300 (AC) |
FEP |
||||||
|
1333 |
30 AWG |
10 AWG |
150 |
300 (AC) |
FEP |
||||||
|
1538 |
36 AWG |
6 AWG |
105 |
125 (AC) |
FEP |
||||||
|
1591 |
32 AWG |
16 AWG |
150 |
300 (AC) |
FEP |
||||||
|
1592 |
32 AWG |
16 AWG |
200 |
300 (AC) |
FEP |
||||||
|
1723 |
32 AWG |
16 AWG |
200 |
300 (AC) |
FEP |
||||||
|
1886 |
30 AWG |
10 AWG |
150 |
300 (AC) |
FEP |
||||||
|
1900 |
30 AWG |
10 AWG |
200 |
300 (AC) |
FEP |
||||||
|
1901 |
30 AWG |
4/0 AWG |
200 |
600 (AC) |
FEP |
||||||
|
10331 |
36 AWG |
10 AWG |
150/200 |
300 (AC) |
FEP |
||||||
|
10588 |
50 AWG |
10 AWG |
200 |
600 (AC) |
FEP |
||||||
|
11049 |
30 AWG |
10 AWG |
200 |
10000(AC) |
FEP |
||||||
|
10588 |
50 AWG |
10 AWG |
200 |
600 (AC) |
FEP |
||||||
|
Silicone Rubber Wire |
|||||||||||
|
File Number Cond min Cond max Temperature (°C) Voltage (V) Insulation |
|||||||||||
|
3122 26 AWG 16 AWG 200 300 (AC) SR |
|||||||||||
|
3132 30 AWG 4/0 AWG 150 300 (AC) SR |
|||||||||||
|
3133 30 AWG 4/0 AWG 150 600 (AC) SR |
|||||||||||
|
3135 26 AWG 12 AWG 200 600 (AC) SR |
|||||||||||
|
3367 26 AWG 10 AWG 200 300 (AC) SR |
|||||||||||
|
3512 0.3 - 250 SQ mm 200 600 (AC) SR |
|||||||||||
|
3239 24 AWG 10 AWG 105 3000 (AC) SR |
|||||||||||
|
Fire-resistant cable (for fire systems) |
|||||||||||
|
File Number |
Number of cores |
Cross-sectional Voltage area (mm²) rating (U0/U) |
Insulation material |
Sheath Conductor material type |
Fire resistance rating |
Typical applications |
|||||
|
H07V-K-FR 2-4 1.5-6 450/750V PVC PVC Class 2 90min@750℃ Fire alarm system |
|||||||||||
|
H05Z1Z1-FR 2-4 1.5-6 300/500V LSOH LSOH Class 2 120min@950℃ |
Emergency lighting, smoke exhaust fan power supply |
||||||||||
|
FP 200 Gold 2-4 1.5-16 750V MgO RVVP Class 1 180min@1000℃ Nuclear power plants, data center core areas |
|||||||||||
|
File Number |
Number of cores |
Cross-sectional Voltage area (mm²) rating (U0/U) |
Insulation material |
Sheath Conductor material type |
Special features |
Typical applications |
||
|
H07Z1Z1-F-PE |
2-5 |
1.5-35 |
450/750V |
LSOH |
PE |
Class 2 |
UV and chemical resistance |
Outdoor solar panel connections |
|
H07BZ1-K-CY |
2-5 |
2.5-16 |
450/750V |
XLPE |
LSOH |
Class 2 |
Copper mesh shielding |
Anti-interference wiring for industrial automation |
|
H07Z1Z1-F-SC |
2-5 |
1.5-25 |
450/750V |
LSOH |
LSOH |
Class 2 |
Self-supporting structure (with steel wire reinforcement) |
Overhead installation, span transmission |
Application Areas
·Widely used in aviation, metallurgy, petroleum, electronic instruments, instruments and meters, household appliances, double transformers and motor lead wires.
