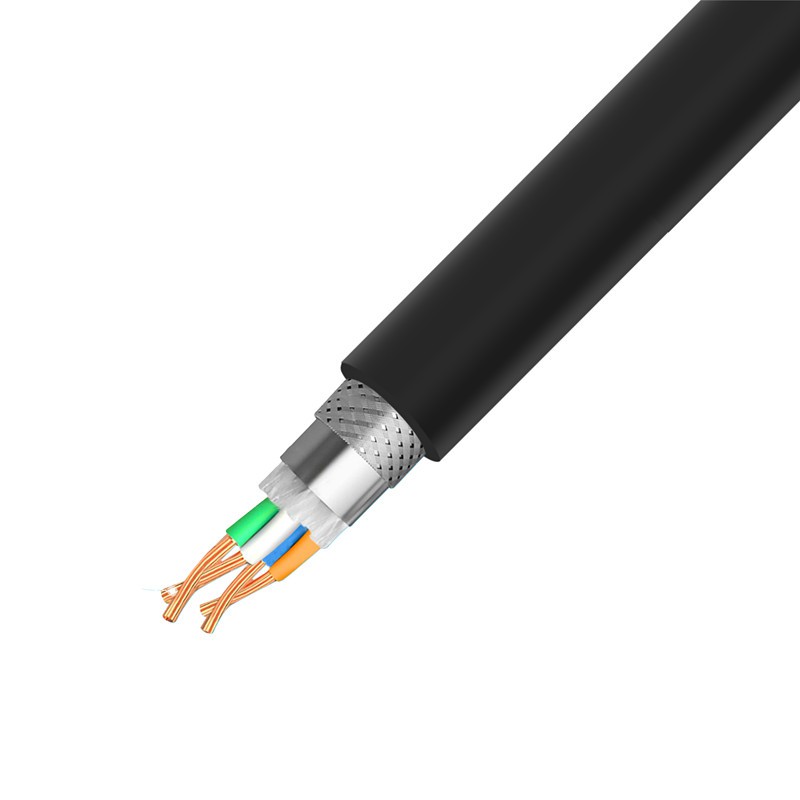

Feature Description
Stable transmission over long distances;
Excellent anti-interference performance;
Capable of realizing both power and signal transmission simultaneously.
Technical parameters
|
Operating voltage |
600V and below |
|
Operating temperature |
40°C-180°C |
|
Environmental performance |
Compliant with RoHS 2.0 and REACH |
Product Description
|
CAN Bus |
1x2x0.34 mm² 2x2x0.34 mm² |
PROFIBUS PA 18AWG(0.88 mm²)x1P 18AWG(0.88 mm²)x2P |
|
Profiba PB |
22AWG(0.25 mm²)x1P 22AWG(0.25 mm²)x2P |
Profibus-DP 22AWG(0.25 mm²)x1P 22AWG(0.25 mm²)x2P |
|
RS485 |
4 AWGx 1 P/2 P/3 P/4 P 22 AWGx 1 P/2 P/3 P/4 P 20 AWGx 1 P/2 P/3 P/4 P 18 AWGx 1 P/2 P/3 P/4 P 16 AWGx 1 P/2 P/3 P/4 P 1.0mm2x 1 P/2 P/3 P/4 P 1.5mm2x1P/2P/3P/4P 2.5mm2x 1 P/2 P/3 P/4 P |
RS232 24AWGx1P/2P/3P/4P 22AWGx1P /2P/3P/4P 20AWGx1P /2P/3P/4P 18AWGx1P /2P/3P/4P 16AWGx1P /2P/3P/4P 1.0mm2x1P/2P/3P/4P 1.5mm2x1P /2P/3P/4P 2.5mm2x1P /2P/3P/4P |
|
RS422 |
24 AWGx 1 P/2 P/3 P/4 P 22 AWGx 1 P/2 P/3 P/4 P 18 AWGx 1P/2 P/3 P/4 P 16 AWGx 1P/2 P/3 P/4 P 1 1.5mm2x1 P/2P/3P/4P 2.5mm2x1 P/2P/3P/4P |
20 AWGx 1 P/2 P/3 P/4 P .0mm2x 1P/2 P/3 P/4 P |
|
KNX |
1x2x0.8 mm 2x2x0.8 mm 4x0.8 mm |
Application areas
·It is used to connect intelligent instruments, control circuits, actuators and other field equipment. It can be used for fixed or flexible installation of cables in harsh environments. It is easy to cut.
