Processing Technic

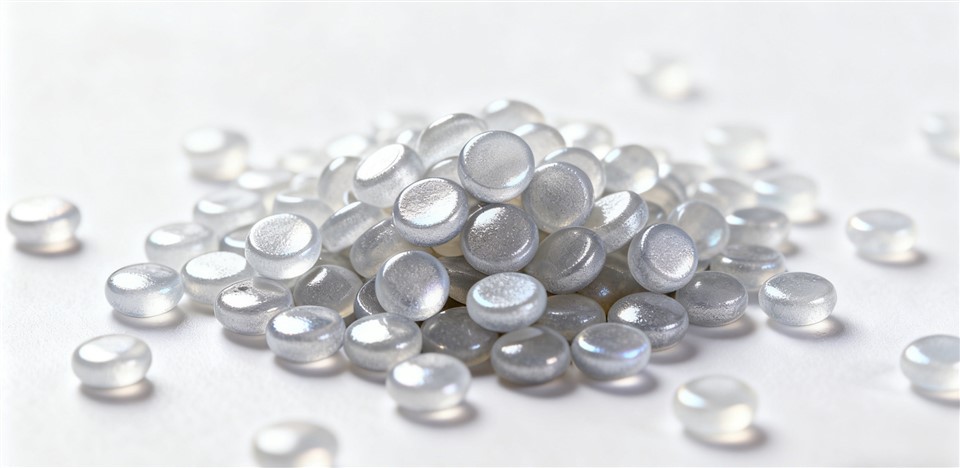

Product Features: The compound is a thermoplastic elastomer,mainly used in the insulation layer and sheath of electric vehicle charging cable,but also can be used in various consumer DC data lines,with high elasticity,low temperature resistance,UV resistance,aging resistance,low temperature flexibility,bending resistance and other mechanical and physical properties,its appearance can be customized according to customers for semi-fog,full fog,fine frosted surface.
Processing Temperature
|
Zone |
Z1 |
Z2 |
Z3 |
Z4 |
Head Die |
|
℃ Temp. |
155~160 |
165~170 |
175~180 |
170~175 |
165~170 |
1.In order to obtain more ideal results,the processing temperature can be increased,and the maximum temperature should not exceed 210℃ .
2.The optimum extrusion temperature also ultimately depends on the compression ratio and length-diameter ratio of the user's extruder and the screw structure and other factors.
Product Specification
|
Item |
Index |
Standard |
|
(23±2℃)Density |
1.0~1.20 g/cm³ |
ASTM D792 |
|
(230℃,5KG)Melt index |
0.2~5g/10min |
ASTM D1238 |
|
(23±2℃)Hardness |
40~95A |
ASTM D2240 |
|
Bending resistance |
One way>60.000 times,conductor does not short circuit,insulation does not breakdown |
GB/T33594-2017 |
|
Abrasion resistance test |
1000 times without wearing out |
JB/T 10696.6-2017 |
|
(500mm/min)Tensile strength |
6~12 Mpa |
ASTM D638 |
|
Elongation at break |
300~600% |
ASTM D638 |
|
(100℃~136×168h) Change rate of tensile strength after aging |
>80% |
ASTM D638 |
|
(110℃~136×168h) Change rate of elongation at break after aging |
>65% |
ASTM D638 |
|
Flame retardant rating test |
N-UL,FT-2,VW-1 |
UL1581 |
|
(-40℃)Low temperature winding/pulling |
<-40℃ |
GB/T2951.14-2008 |
|
(20℃)Volume resistivity |
≥1×1012 Ω ·cm |
IEC 60167/GB1410 |
|
(0.025~0.030%ozone concentration*24H) |
No crack |
GB/T2951.14-2008 |
|
Environmental protection standard |
RoHS,REACH,NP,Halogen-free |
Package,Transport And Storage
1.It should be stored in a clean,cool,dry and ventilated warehouse.If the moisture resistance fails,it must be dried before use,the drying temperature is 90℃,and the time is at least 1 to 2 hours.
