Processing Technic

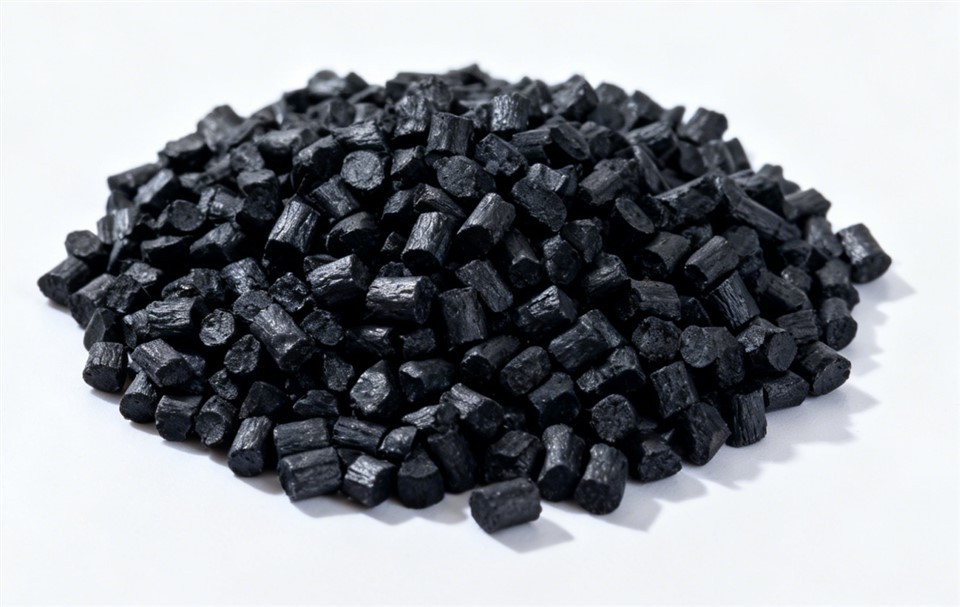

Product features: Polyolefin has halogen-free,small smoke and heat release during combustion,non-toxic,flame retardant,fire-resistant,safe,environmental protection characteristics,the appearance of semi-bright surface,without irradiation can reach the heat resistance requirements of 70°℃-105°℃,widely used in home wiring,optical cables,network cables,power and control cables.
Processing Temperature
|
Zone |
Z1 |
Z2 |
Z3 |
Z4 |
Head Die |
|
Temp. |
130~140 |
145~155 |
155~165 |
160~165 |
150~155 |
1.In order to obtain more ideal results,the processing temperature can be increased,and the maximum temperature should not exceed 180℃ .
2.The most suitable extrusion temperature also depends on factors such as the compression ratio and length-diameter ratio of the user's extruder and the screw structure.
Product Specification
|
Item |
Index |
Standard |
|
Density |
1.60-1.70 g/cm³ |
GB/T1033-2008 |
|
(130℃×1h)Thermal shock |
No cracking |
GB/T32129-2015 |
|
Hardness |
93~96A |
ISO 868 |
|
Tensile strength before aging |
≥10 Mpa |
GB/T1040.3-2006 |
|
Elongation at break before aging |
≥160% |
GB/T1040.3-2006 |
|
(110°℃×240h) Change rate of tensile strength after aging |
±25% |
GB/T1040.3-2006 |
|
(110℃×240h) Change rate of elongation at break after aging |
±25% |
GB/T1040.3-2006 |
|
(-25°℃×4h) Low temperature impact embrittlement |
Number of failures<15(30 in total) |
GB/T5470-2008 |
|
Flame retardant rating (oxygen index) |
≥40 |
GB/T 2406-2008 |
|
THR MJ Total heat release |
≤15 |
GB 31247-2014 |
|
TSP(M2)Total smoke production |
≤50 |
GB 31247-2014 |
|
Luminousness |
≥60% |
GB 31247-2014 |
|
(Us/mm)Conductivity |
≤10 |
GB/T17650.2-1998 |
|
(mm)Carbonization length |
≤425 |
GB 31247-2014 |
|
(70°℃×168h)Hot water immersion test |
The change rate of fracture elongation is±35%, and the change rate of tensile strength is ±30%. |
GB/T1040.3-2006 |
|
PH值 Pondus hydrogenii value |
≥4.3 |
IEC 60247 |
|
(N/mm)Tear resistance |
≥8 |
JB/T10696.7-2007 |
|
Dielectric strength |
≥20 MV/m |
EC 60243/GB1408 |
|
(20°℃)Volume resistivity |
≥1×10²Ω ·cm |
IEC 60167/GB1410 |
Package,Transport And Storage
1.The specification is high flame retardant,easy moisture absorption,should be stored in a clean,cool,dry,ventilated warehouse.If the moisture resistance fails,it must be dried before use,and the drying temperature is 80℃ for at least 1 hour.
Processing Technic
Product Features: irradiated polyolefin has halogen-free,excellent heat aging,small smoke and heat release during combustion, non-toxic,flame retardant,fire resistant,safe,environmental protection characteristics,the appearance of semi-bright surface,after irradiation can reach 125°℃-150℃ heat resistance requirements,widely used in photovoltaic,optical cable,power cable,energy storage,locomotive wire,power control cable.
Processing Temperature
|
Zone |
Z1 |
Z2 |
Z3 |
Z4 |
Head Die |
|
℃Temp. |
140~145 |
150~155 |
160~165 |
150~155 |
145~155 |
1.In order to obtain more ideal results,the processing temperature can be increased,and the maximum temperature should not exceed 180℃ to prevent the phenomenon of pre-crosslinking at high temperatures.
2.The most suitable extrusion temperature also depends on factors such as the compression ratio and length-diameter ratio of the user's extruder and the screw structure.
3.The radiation dose of the wire is based on the diameter of the wire,and the recommended radiation dose is 10 to 25 megabrads (Mrad).
Product Specification
|
Item |
Index |
Standard |
|
Density |
1.35-1.55 g/cm³ |
GB/T1.33.1-2008 |
|
(130℃×1h)Thermal shock |
NO crack |
GB/T 2423 IEC60068 |
|
Hardness |
75~95A |
ISO 868 |
|
(200℃×0.2Mpa×10Min)Thermal elongation |
<50% |
GB/T2951.11-2008 |
|
(100℃×168h)Tensile strength |
9~15 Mpa |
GB/T1040.3-2006 |
|
(100°℃×168h)Elongation at break |
150~300% |
GB/T1040.3-2006 |
|
(100℃×168h) Variation rate of tensile strength |
±20% |
GB/T2951.12-2008 |
|
(100°℃×168h) Rate of change of elongation at break |
±20% |
GB/T2951.12-2008 |
|
(80℃×4h)Heating deformation |
<30% |
GB/T8815-2008 |
|
Flame retardant rating (according to product quality requirements) |
IEC60332,FT-2,VW-1,CM,CMR, Grade D,C,B3,B2,B1,A |
IEC60332,UL444, UL1581,UL1685 |
|
(-20°℃ ~ -40°℃) Low temperature winding embrittlement temperature |
-20 ~ -40℃no crack |
UL444/UL62 |
|
Maximum heat release rate HRR(KW) |
<60 |
GB 31247-2014 |
|
THR MJ Total heat release THR MJ |
≤30 |
GB 31247 |
|
TSP(M2)Total smoke production TSP(M2) |
<400 |
GB 31247 |
|
Luminousness |
>60% |
EN50616 |
|
(340NM×720h)UV aging elongation |
>80% |
IEC 60247 |
|
Environmental protection standard |
RoHS,REACH,NP,Halogen-free |
Package,Transport And Storage
1.t should be stored in a clean,cool,dry and ventilated warehouse.If the moisture resistance fails,it must be dried before use,and the drying temperature is 80℃ for at least 1 hour.
